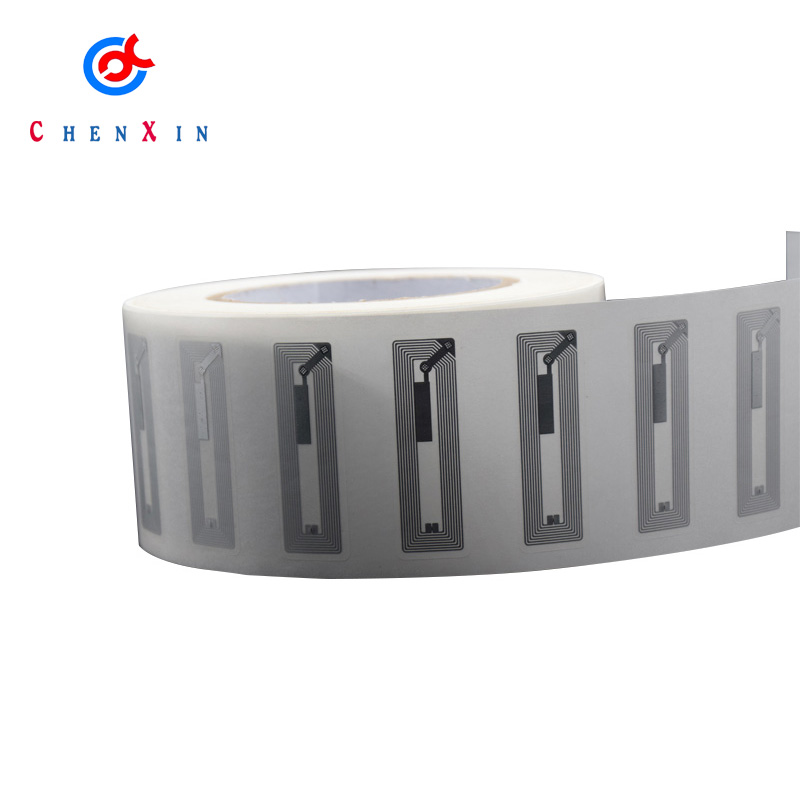

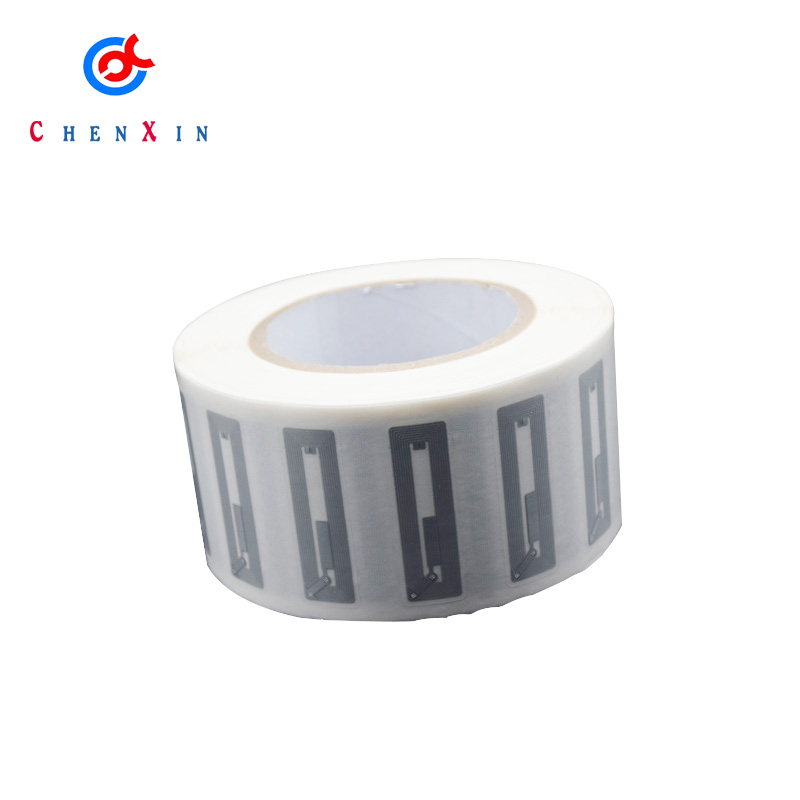

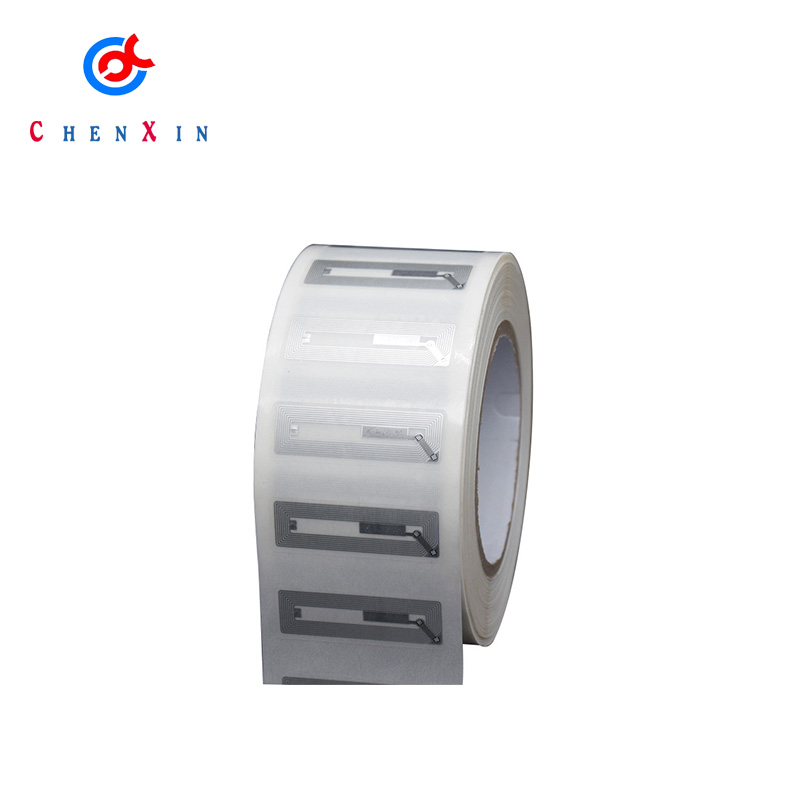

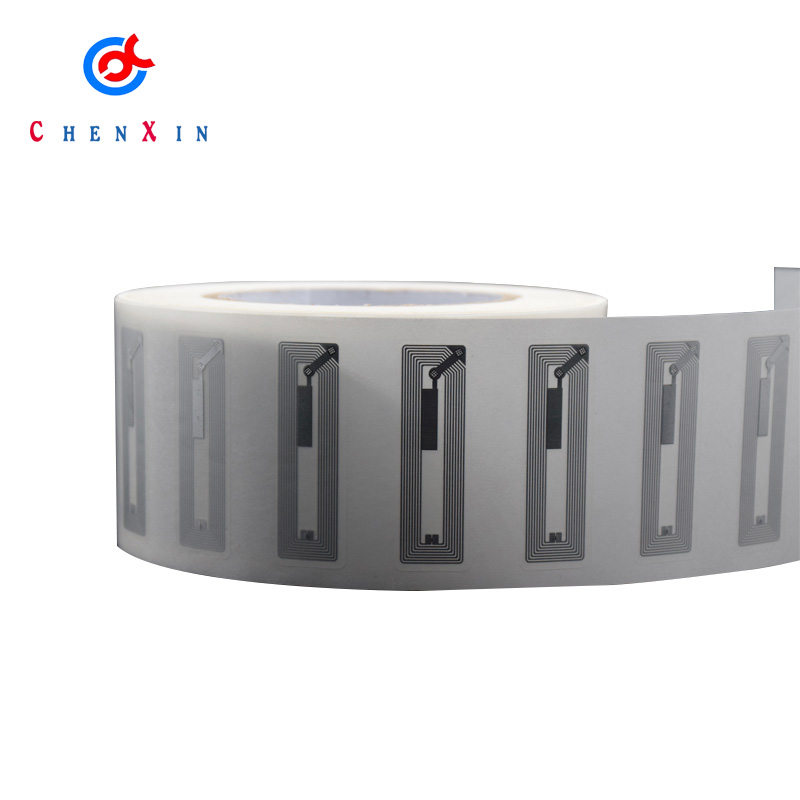

NFC label RFID high frequency sticker printable NFC label restaurant
Chip:Fudan F08
Frequency:13.56Mhz
Protocol:ISO14443A
Material:coated paper
Size:55*18mm
Application:Multiple locations such as container tracking, packaging tracking, warehouse management, supermarket management or document management,etc
  • Long service life

  • Highly integrated

  • Extensive use

Product Details

Description:

Wet inlays are inlays that have an adhesive backing with a clear or colored topsurface of PVC, PET or paper, the PVC or PET wet inlays are commonly used to make “RFID Label” where the inlay is placed on the back of the label with the adhesive side away from the label side so that the label has continuous adhesive. PLacement of the wet inlay on the label is very specific to each RFID printer in order to be programmed correctly by the printer and also to minimize the risk of damaging the RFID inlay while in the printer.

Dry inlays are inlays that are attached to the substrate backing material commonly called the web.


RFID inlay features:

Unlike RFID prelam is a semi product which is used for making RFID cards and other related products. RFID Inlay can be used directly as RFID wet inlay and RFID dry inlay. The RFID dry inlay is typically supplied on a substrate or carrier. If coating with adhesive, it is called a RFID wet inlay. RFID white Wet Inlay is convenient and simple, more widely used.


Project
Description
Chip
F08
Base material
PET
Antenna structure
Aluminum etching
Protocol
ISO 14443A
Memory capacity
144 bytes
Operating Frequency
13.56 mhz
Work  mode
Passive
Using Life
Read 100.000 times,save 10 years


Why should you buy from us not from other suppliers?

1. High quality

2. Factory competitive price

3. OEM & ODM acceptable

4. Small order welcome

5. Fast delivery

6. Independent R&D team

7. Excellent customer service
